The EM300-24-122 Round Electromagnet is a high-quality, precision-made product that provides exceptional holding force of up to 300 lbs. Designed for use in mechanical and electrical applications, this 3-inch diameter electromagnet is engineered to work with a 24-volt DC power source. The unit is constructed with superior materials and advanced manufacturing processes to ensure reliable, long-lasting performance. Electromagnets are used in a wide range of applications, including material handling, robotics, industrial automation, and security systems, making the EM300-24-122 an ideal choice for professionals seeking a powerful and dependable electromagnet solution.
EM300-24AC-122 - Round Electromagnet 3 inch Dia. 24 volts AC - Holding 300 lbs.
$90.42
EM300-12-122 - Round Electromagnet 3 inch Dia. 12 volts DC - Holding 300 lbs.
$83.04
EM300-24-122 – Round Electromagnet 3 inch Dia. 24 volts DC – Holding 300 lbs.
$83.04
Available on backorder

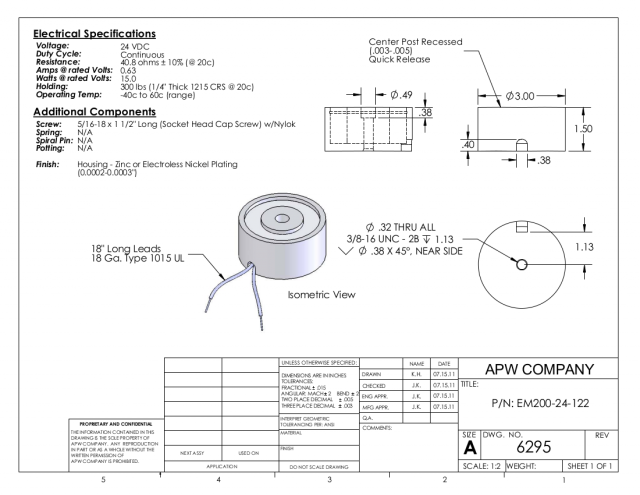

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 300 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.62 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
