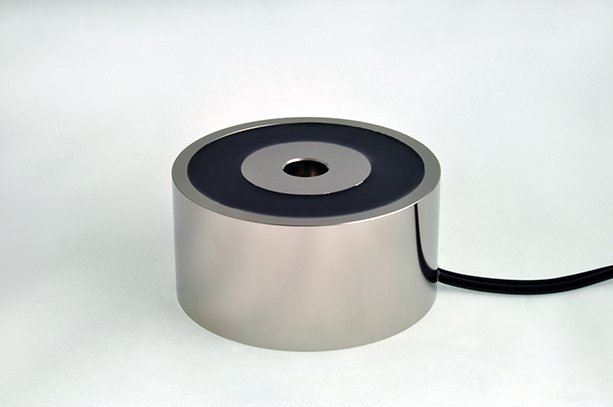

The EM300-230ac-212 is a high-performance round electromagnet with a 3-inch diameter, designed to hold up to 400 lbs. It operates on 230 volts AC, making it ideal for a variety of industrial applications that require powerful, precise holding and releasing of ferromagnetic materials. This high-quality electromagnet is made with precision craftsmanship, ensuring reliable performance and durability in demanding conditions. It is a versatile solution for automated material handling, robotics, assembly line processes, and more, making it an essential component in many mechanical and electrical engineering applications.
EM300-4-212 - Round Electromagnet 3 inch Dia. 4 volts DC - Holding 400 lbs.
$95.80
EM300-115ac-212 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs.
$108.30
EM300-230ac-212 – Round Electromagnet 3 inch Dia. 230 volts AC – Holding 400 lbs.
$114.02
1 in stock (can be backordered)

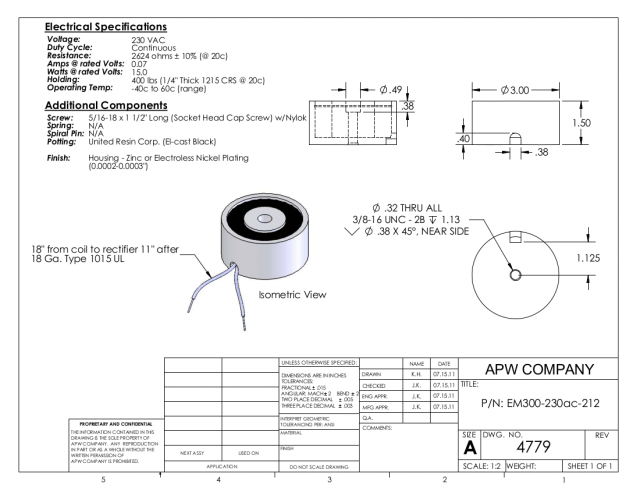

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 400 |
| Voltage | 230 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.06 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
