The EM300-110-112 is a high-quality, precision-made round electromagnet with a 3 inch diameter and a holding capacity of 300 lbs. It operates on a 110 volt DC power source and is designed for use in a variety of applications where strong magnetic holding force is required. This electromagnet can be used in applications such as automated manufacturing, robotics, material handling, and magnetic separation systems. With its high holding capacity and reliable performance, the EM300-110-112 is a top choice for engineers in need of a powerful electromagnet.
EM300-115ac-112 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 300 lbs.
$108.30
EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs.
$95.80
EM300-110-112 – Round Electromagnet 3 inch Dia. 110 volts DC – Holding 300 lbs.
$95.81
Available on backorder

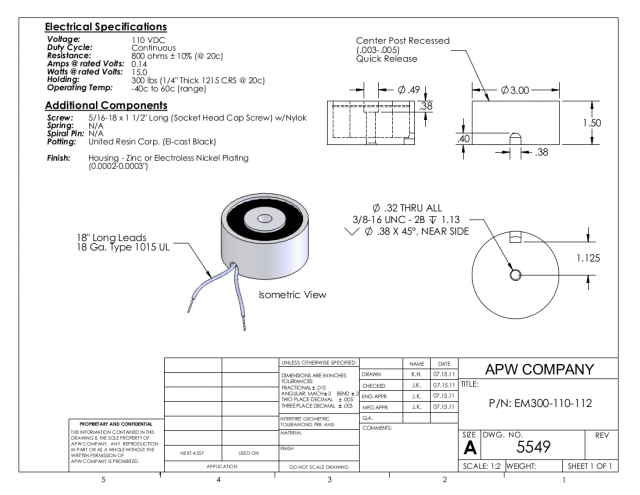

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 3 × 3 × 1.5 in |
| Holding Force (Lbs.) (2) | 300 |
| Voltage | 110 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.13 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 5/16-18 x 1 1/2 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 3 |
| Height (in.) 3 | 1.5 |
