The EM237-115ac-212 Round Electromagnet is a high-quality, precision-made product engineered for mechanical and electrical professionals. With a diameter of 2.37 inches and voltage of 115 AC, it has a holding capacity of 190 lbs. This product is ideal for applications requiring high-strength magnetic force such as automation, lifting, and clamping systems. The advanced design and materials used in the EM237-115ac-212 make it durable and reliable, ensuring its long-term use in industrial and commercial applications.
EM237-24-212 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 190 lbs.
$61.49
EM237-6-112 - Round Electromagnet 2.37 inch Dia. 6 volts DC - Holding 170 lbs.
$63.49
EM237-115ac-212 – Round Electromagnet 2.37 inch Dia. 115 volts AC – Holding 190 lbs.
$75.21
4 in stock (can be backordered)

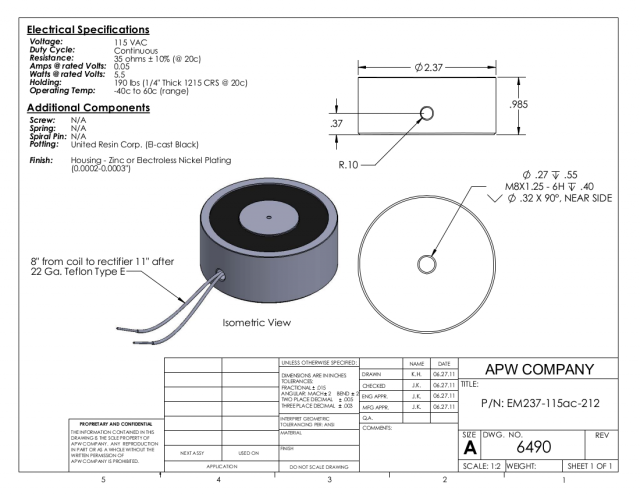

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 2.37 × 2.37 × 0.98 in |
| Holding Force (Lbs.) (2) | 190 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.05 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Tapped M8 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 19 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2.37 |
| Height (in.) 3 | 0.98 |
