The EM200-6-122-A Round Electromagnet is a precision-made high-quality product with a 2 inch diameter capable of holding up to 105 lbs with 6 volts DC. It is designed for a range of applications such as material handling, metalworking, packaging, and automation. The compact size and powerful holding force of the electromagnet make it ideal for use in tight spaces or where a low voltage power source is preferred. The EM200-6-122-A is an excellent solution for various industrial and manufacturing settings requiring a dependable and efficient electromagnet.
EM200-24-122-A - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs.
$41.61
EM200-115ac-112-AB - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.
$69.63
EM200-6-122-A – Round Electromagnet 2 inch Dia. 6 volts DC – Holding 105 lbs.
$41.61
Available on backorder

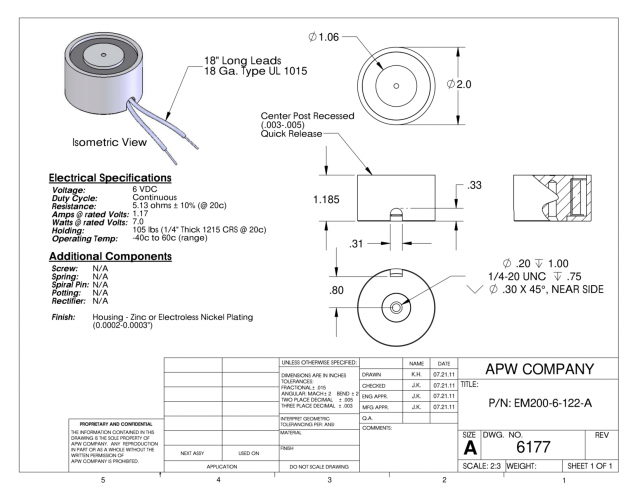

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 6 |
| Current | DC |
| Duty | Continuous |
| Amps | 1.16 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
