EM200-24H-112-B is a high-temperature round electromagnet with a 2-inch diameter, capable of holding 140 lbs. This high-quality, precision-made product is designed for applications where extreme temperatures are present. It is engineered to operate reliably in high-temperature environments, such as automotive, aerospace, and industrial applications. The EM200-24H-112-B is a DC-powered electromagnet, which makes it ideal for use in machines that require powerful and durable electromagnets to function. The electromagnet is constructed using high-quality materials, ensuring a long lifespan and dependable performance.

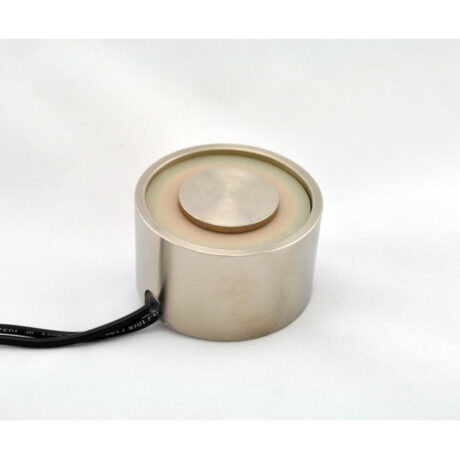

EM200-24-222-A - Round Electromagnet 2 inch Dia. 24 VDC - Holding 140 lbs.
$41.61

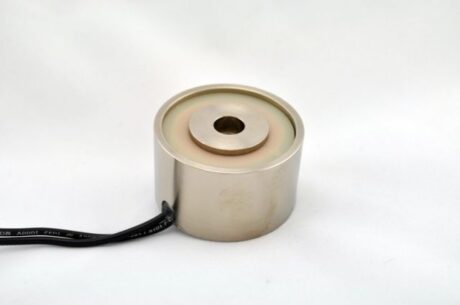

EM200-12-122-A - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.
$41.61

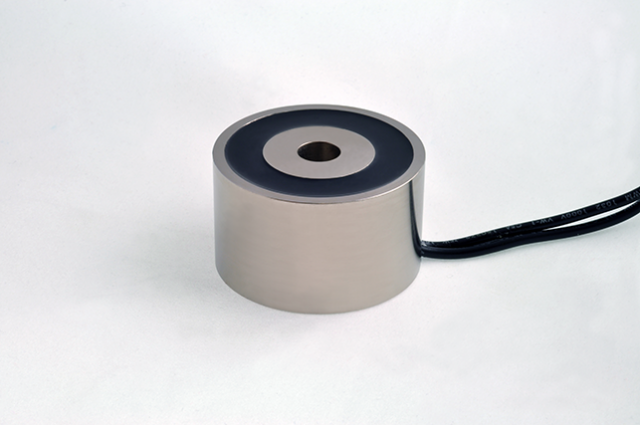

EM200-24H-112-B – Round Electromagnet 2 inch Dia. 24 volts DC – Holding 140 lbs.
$109.63
Available on backorder

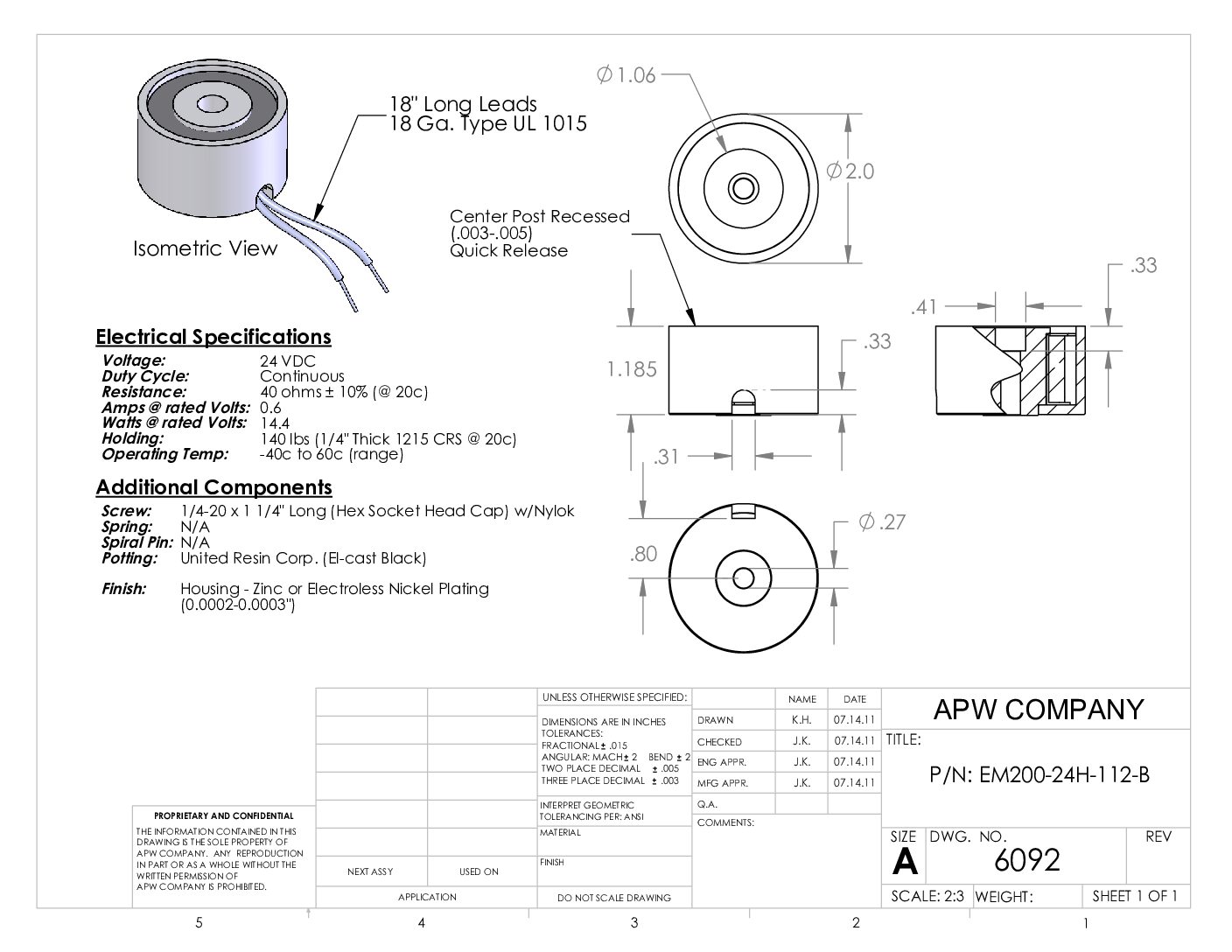

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.6 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
