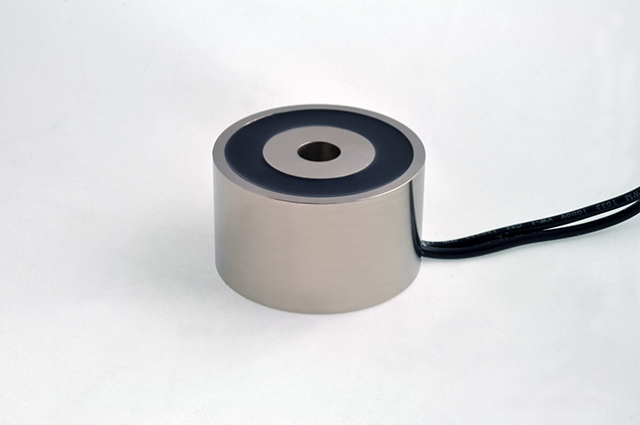

The EM200-24ac-212 is a high-quality precision-made round electromagnet with a diameter of 2 inches and the ability to hold up to 140 lbs. It operates on 24 volts AC and is designed for use in a variety of applications that require strong holding forces. Its robust construction and reliable performance make it an ideal solution for use in industrial automation, material handling, and robotics applications. The electromagnet is engineered to strict standards and is built to withstand the harsh conditions of industrial environments, ensuring dependable operation for years to come.
EM200-115ac-212 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.
$62.88
EM200-110-212 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs.
$59.75
EM200-24ac-212 – Round Electromagnet 2 inch Dia. 24 volts AC – Holding 140 lbs.
$53.21
Available on backorder

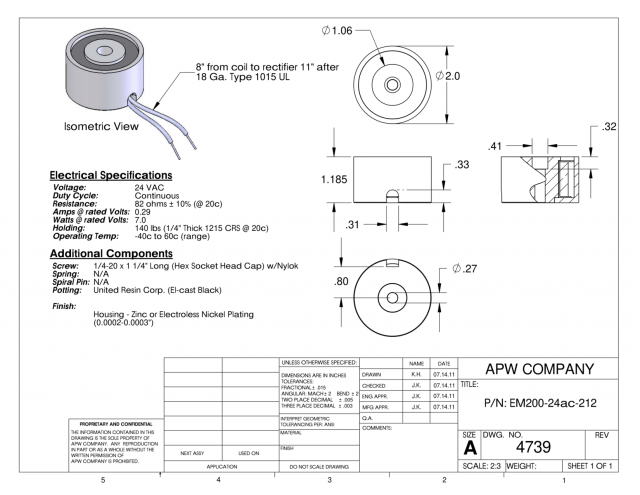

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 24 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.29 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
