The EM200-24-212 is a high-quality round electromagnet with a 2-inch diameter and 24 volts DC, capable of holding 140 lbs. This precision-made product is suitable for a variety of industrial applications that require reliable and robust magnetic holding capabilities. Common applications include material handling, assembly line automation, and security systems. The electromagnet’s superior design ensures long-term durability and high performance, making it a valuable addition to any engineering project.
EM200-110-212 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs.
$59.75
EM200-12-212 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.
$53.19

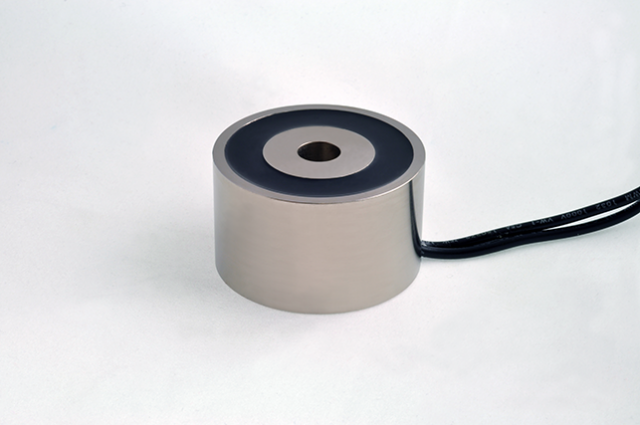

EM200-24-212 – Round Electromagnet 2 inch Dia. 24 volts DC – Holding 140 lbs.
$53.21
247 in stock (can be backordered)

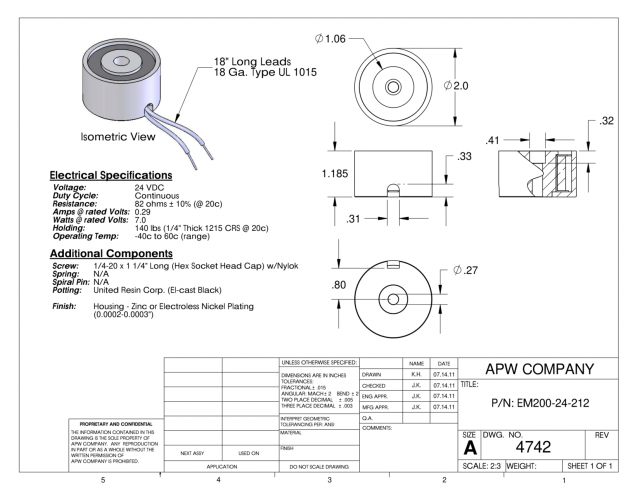

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.29 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
