The EM200-12-212-A is a high-quality precision-made round electromagnet with a diameter of 2 inches, capable of holding up to 140 lbs. at 12 volts DC. This electromagnet is designed for a variety of applications in the mechanical and electrical engineering fields where the secure holding and release of metallic components is necessary. It is made from high-quality materials to ensure durability and reliability in the most demanding applications. The EM200-12-212-A is a superior electromagnet that delivers exceptional performance and is ideal for use in industrial automation, robotics, and material handling systems.
EM150-24-222-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs.
$37.32
EM200-24-212-A - Round Electromagnet 2 inch Dia. 24 VDC - Holding 140 lbs.
$41.61
EM200-12-212-A – Round Electromagnet 2 inch Dia. 12 VDC – Holding 140 lbs.
$41.61
Available on backorder

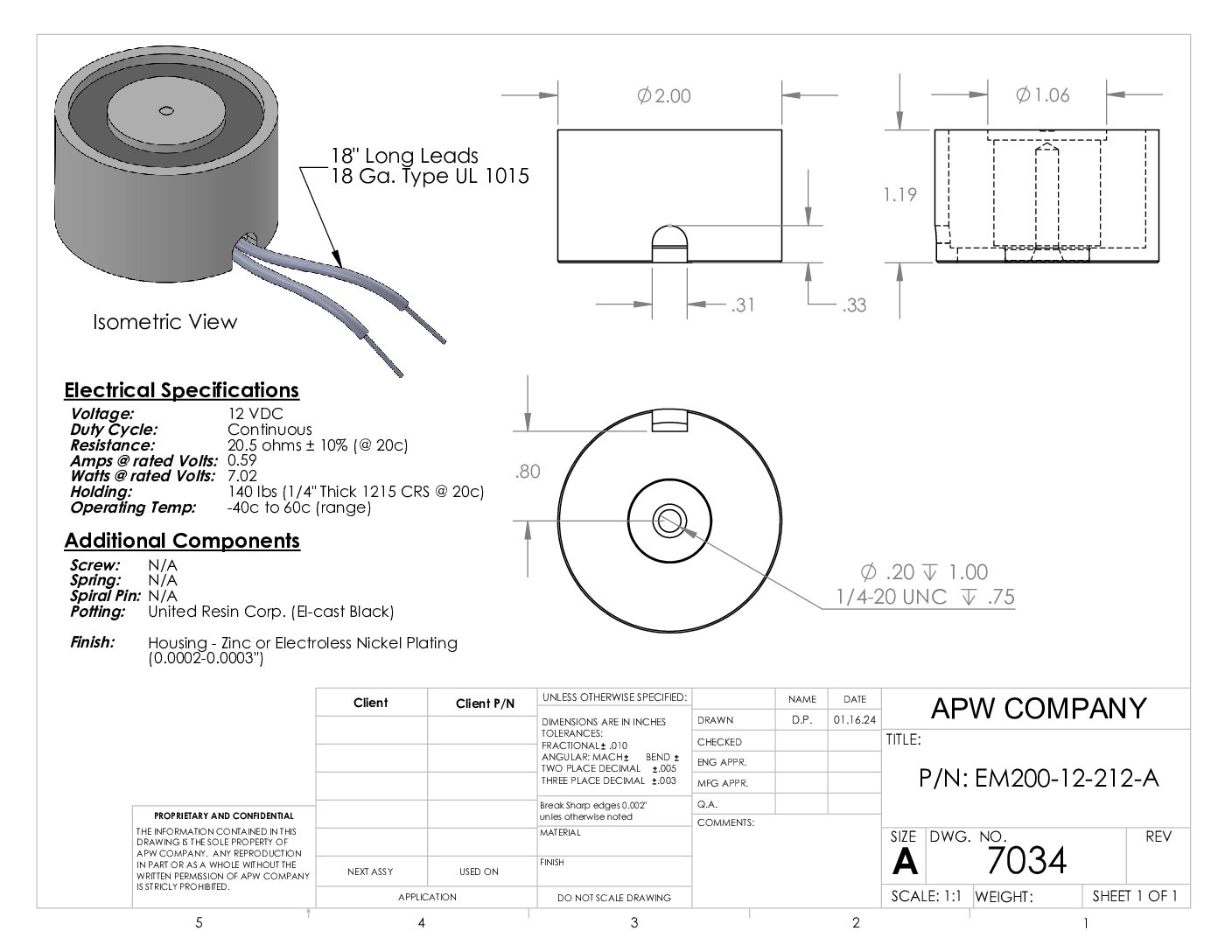

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | .59 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Rear Tapped 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
