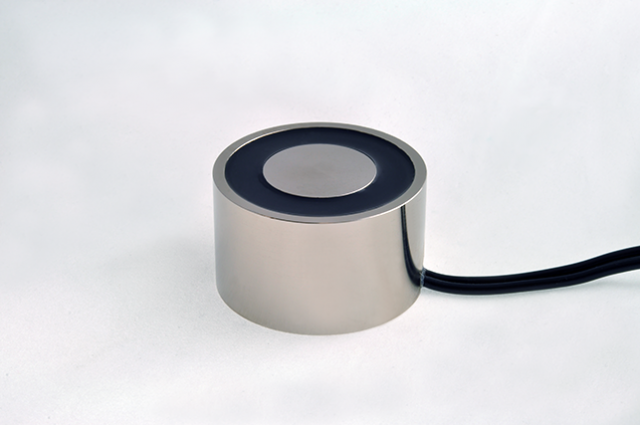

The EM200-115ac-212-A Round Electromagnet is a high-performance solution designed for mechanical and electrical engineering applications. With a 2-inch diameter, this electromagnet is capable of holding up to 140 lbs. when powered by 115 volts AC. This high-quality, precision-made product is perfect for use in a variety of industrial and commercial settings, including robotics, automation, material handling, and more. Its durability and reliability make it an ideal choice for demanding applications, while its easy installation and low maintenance requirements ensure hassle-free operation.
EM200-115ac-112-B – Round Electromagnet 2 inch Dia. 115 volts AC – Holding 105 lbs.
$69.63
EM237-6-212 - Round Electromagnet 2.37 inch Dia. 6 volts DC - Holding 190 lbs.
$61.49
EM200-115ac-212-A – Round Electromagnet 2 inch Dia. 115 volts AC – Holding 140 lbs.
$69.63
Available on backorder
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.2 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 7/16-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
