The EM200-115ac-122 is a high-quality, precision-made round electromagnet, measuring 2 inches in diameter and holding up to 105 lbs. of weight. Designed to operate on 115 volts AC, it is suitable for a variety of applications where powerful magnetic force is required, such as conveyor systems, sorting and separating equipment, and robotics. The electromagnet is constructed with durable materials, ensuring longevity and reliability even in challenging environments. With its precise engineering and exceptional holding strength, the EM200-115ac-122 is an ideal choice for demanding mechanical and electrical engineering applications.
EM200-12-222 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.
$41.61
EM200-110-122 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs.
$66.26
EM200-115ac-122 – Round Electromagnet 2 inch Dia. 115 volts AC – Holding 105 lbs.
$47.86
Available on backorder

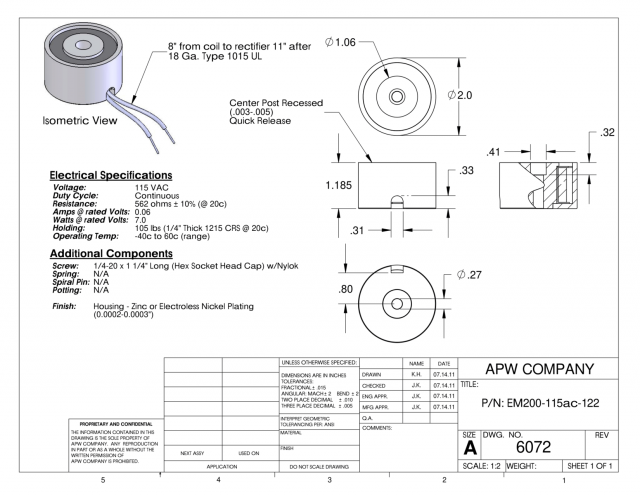

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 105 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.06 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
