The EM200-110-222 is a highly efficient, precision-made round electromagnet with a diameter of 2 inches, a voltage of 110V DC, and a holding capacity of 140 lbs. This electromagnet is ideal for use in various mechanical and electrical applications, such as in conveyor systems, sorting equipment, and robotic machinery. Its high-quality construction ensures durability and reliability in demanding environments. With its exceptional holding strength and reliable performance, the EM200-110-222 is an excellent choice for engineers and designers seeking a top-of-the-line electromagnet for their projects.
EM200-115ac-222 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.
$61.72
EM200-24-222 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 140 lbs.
$41.61
EM200-110-222 – Round Electromagnet 2 inch Dia. 110 volts DC – Holding 140 lbs.
$59.41
Available on backorder

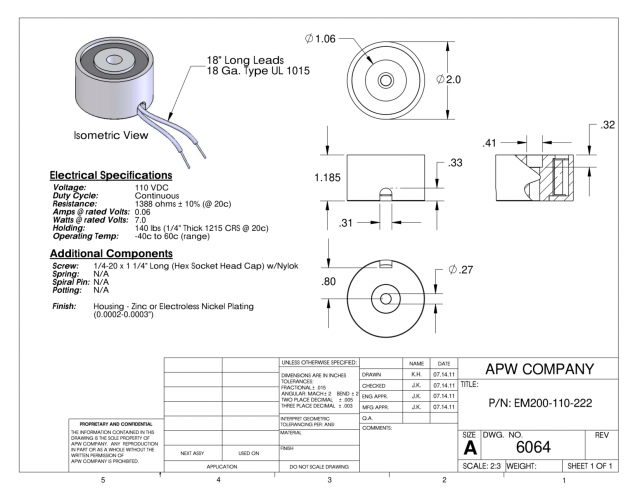

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 2 × 2 × 1.18 in |
| Holding Force (Lbs.) (2) | 140 |
| Voltage | 110 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.06 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 18 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 2 |
| Height (in.) 3 | 1.18 |
