The EM175-24-222 is a high-quality, precision-made round electromagnet with a 1.75-inch diameter and a holding capacity of 100 lbs. It operates on 24 volts DC and is suitable for use in a variety of applications where electromagnets are used, such as in the automotive, robotics, and industrial industries. Its durable design and reliable performance make it a trusted choice for engineers and manufacturers. The product is engineered to meet high industry standards, ensuring excellent performance and longevity.
EM175-6-222 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 100 lbs.
$38.13
EM175-115ac-122 - Round Electromagnet 1.75 inch Dia. 115 volts AC - Holding 75 lbs.
$45.58
EM175-24-222 – Round Electromagnet 1.75 inch Dia. 24 volts DC – Holding 100 lbs.
$38.13
Available on backorder

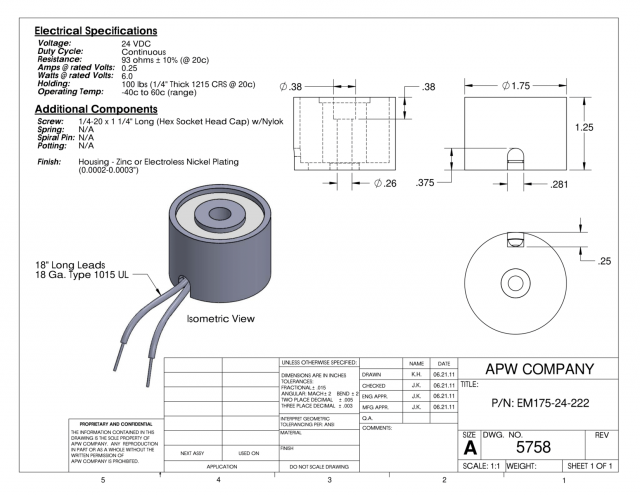

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.61 lbs |
|---|---|
| Dimensions | 1.75 × 1.75 × 1.25 in |
| Holding Force (Lbs.) (2) | 100 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.25 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.75 |
| Height (in.) 3 | 1.25 |
