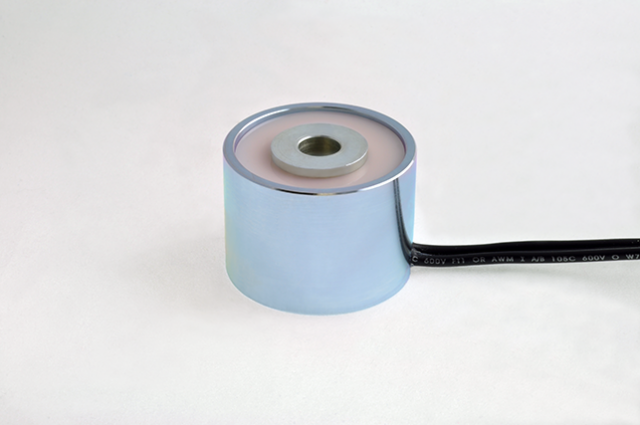

The EM175-24-112 is a high-performance round electromagnet, precision-engineered to hold 75 lbs of weight. With a diameter of 1.75 inches, it operates on 24 volts DC and is a top-quality, precision-made product for mechanical and electrical engineers. Applications for this electromagnet include use in robotics, manufacturing, and automation equipment. It features a strong magnetic force, a compact size, and is built to last, making it an ideal choice for a wide range of demanding applications.
EM175-6-122 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 75 lbs.
$38.13
EM175-12-212 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 100 lbs.
$38.11
EM175-24-112 – Round Electromagnet 1.75 inch Dia. 24 volts DC – Holding 75 lbs.
$44.77
Available on backorder
PRODUCT FILES: 3-D FILE
Additional information
| Weight | 0.61 lbs |
|---|---|
| Dimensions | 1.75 × 1.75 × 1.25 in |
| Holding Force (Lbs.) (2) | 75 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.25 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.75 |
| Height (in.) 3 | 1.25 |
