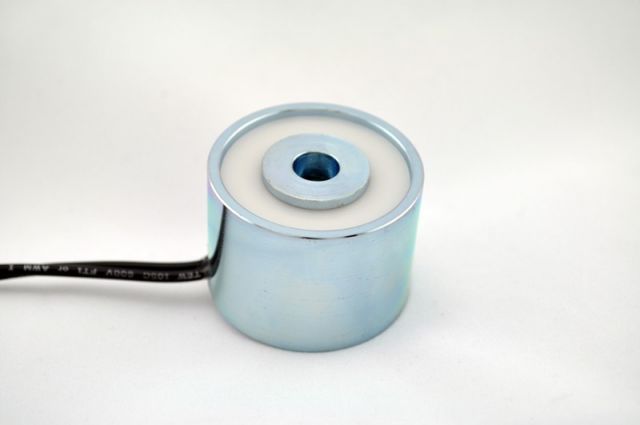

EM175-115ac-222 is a high-performance round electromagnet with a diameter of 1.75 inches and a holding capacity of 100 lbs. This precision-made product is designed for use in various applications, including industrial automation, material handling, and robotics. Its high-quality construction and 115 volts AC power supply make it a reliable and effective tool for lifting and holding heavy loads. The compact design of the electromagnet makes it easy to integrate into existing machinery, and its durability ensures long-lasting performance in harsh environments.
EM150-28-222 – Round Electromagnet 1.5 inch Dia. 28 volts DC – Holding 88 lbs.
$30.62
EM175-110-222 - Round Electromagnet 1.75 inch Dia. 110 volts DC - Holding 100 lbs.
$45.58
EM175-115ac-222 – Round Electromagnet 1.75 inch Dia. 115 volts AC – Holding 100 lbs.
$47.88
Available on backorder

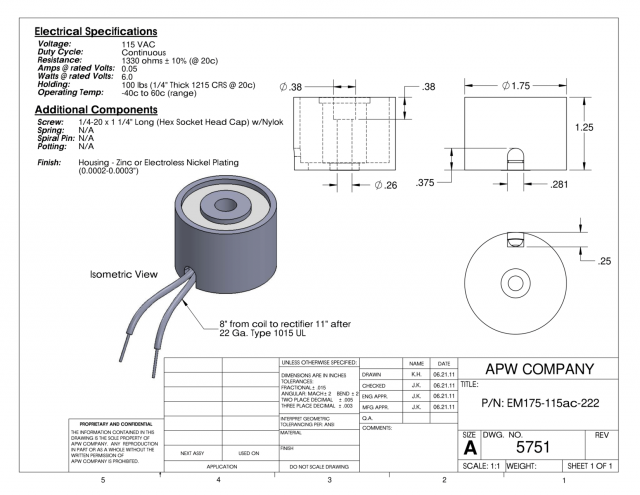

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.61 lbs |
|---|---|
| Dimensions | 1.75 × 1.75 × 1.25 in |
| Holding Force (Lbs.) (2) | 100 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.05 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 1/4-20 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.75 |
| Height (in.) 3 | 1.25 |
