The EM150-36-212 Round Electromagnet is a high quality precision-made product with a 1.5 inch diameter and a 36 volts DC power requirement, capable of holding up to 88 lbs. Electromagnets of this type are commonly used in industrial applications, such as material handling and sorting systems, conveyor belts, and robotic systems. The product is designed to deliver reliable and consistent performance, making it an ideal solution for applications where high holding forces are required.
EM150-6-212 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs.
$37.32
EM150-115ac-112 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs.
$46.31
EM150-36-212 – Round Electromagnet 1.5 inch Dia. 36 volts DC – Holding 88 lbs.
$37.31
Available on backorder

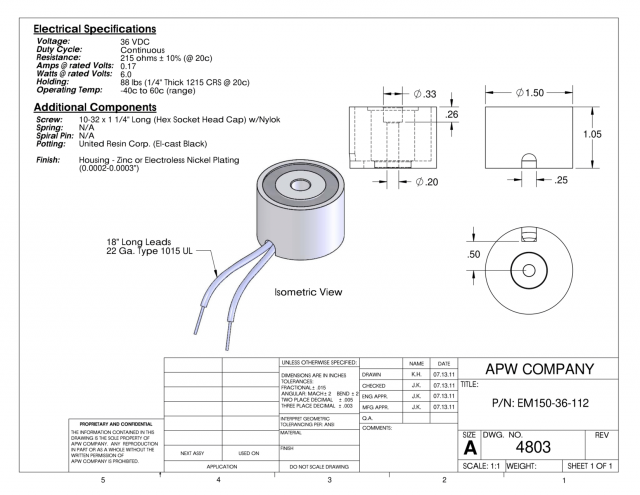

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 88 |
| Voltage | 36 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.16 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
