The EM150-24ac-112 Round Electromagnet is a high-quality, precision-made product designed for applications requiring a holding force of up to 66 lbs. With a diameter of 1.5 inches and 24 volts AC, this electromagnet is suitable for use in various industrial, mechanical, and electrical settings where a reliable and strong magnetic field is required. Common applications include clamping, holding, and lifting metal objects in manufacturing and assembly lines, security systems, and magnetic door locks. This electromagnet is built to last and provides consistent performance even under extreme conditions.
EM150-115ac-112 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 66 lbs.
$46.31
EM150-110ac-112 - Round Electromagnet 1.5 inch Dia. 110 volts AC - Holding 66 lbs.
$46.31
EM150-24ac-112 – Round Electromagnet 1.5 inch Dia. 24 volts AC – Holding 66 lbs.
$43.98
Available on backorder

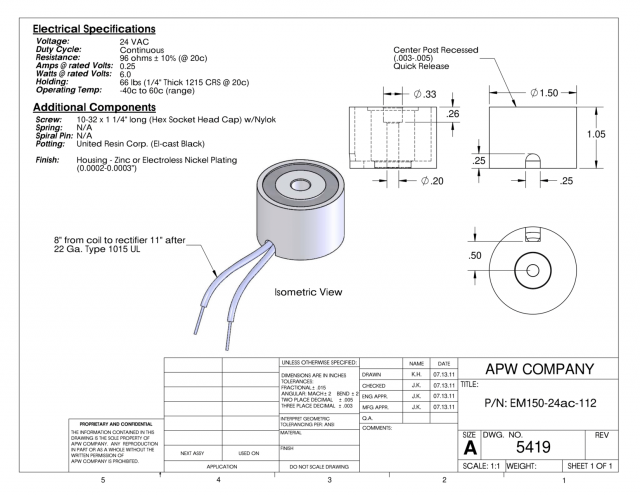

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 66 |
| Voltage | 24 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.25 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
