The EM150-12-222-A is a high-quality, precision-made round electromagnet that has a holding force of 88 lbs. Designed for use in applications where a reliable, compact and powerful electromagnetic solution is needed, this product is ideal for a variety of mechanical and electrical engineering projects. Its 1.5-inch diameter makes it suitable for use in a range of environments, including industrial machinery, robotics, and automated production lines. This electromagnet operates on 12 volts DC and is engineered to meet the highest quality standards, ensuring durability and long-lasting performance.
EM150-12-212-A - Round Electromagnet 1.5 inch Dia. 12 VDC - Holding 88 lbs.
$30.62
EM150-24-222-A – Round Electromagnet 1.5 inch Dia. 24 VDC – Holding 88 lbs.
$37.32
EM150-12-222-A – Round Electromagnet 1.5 inch Dia. 12 VDC – Holding 88 lbs.
$30.62
15 in stock (can be backordered)

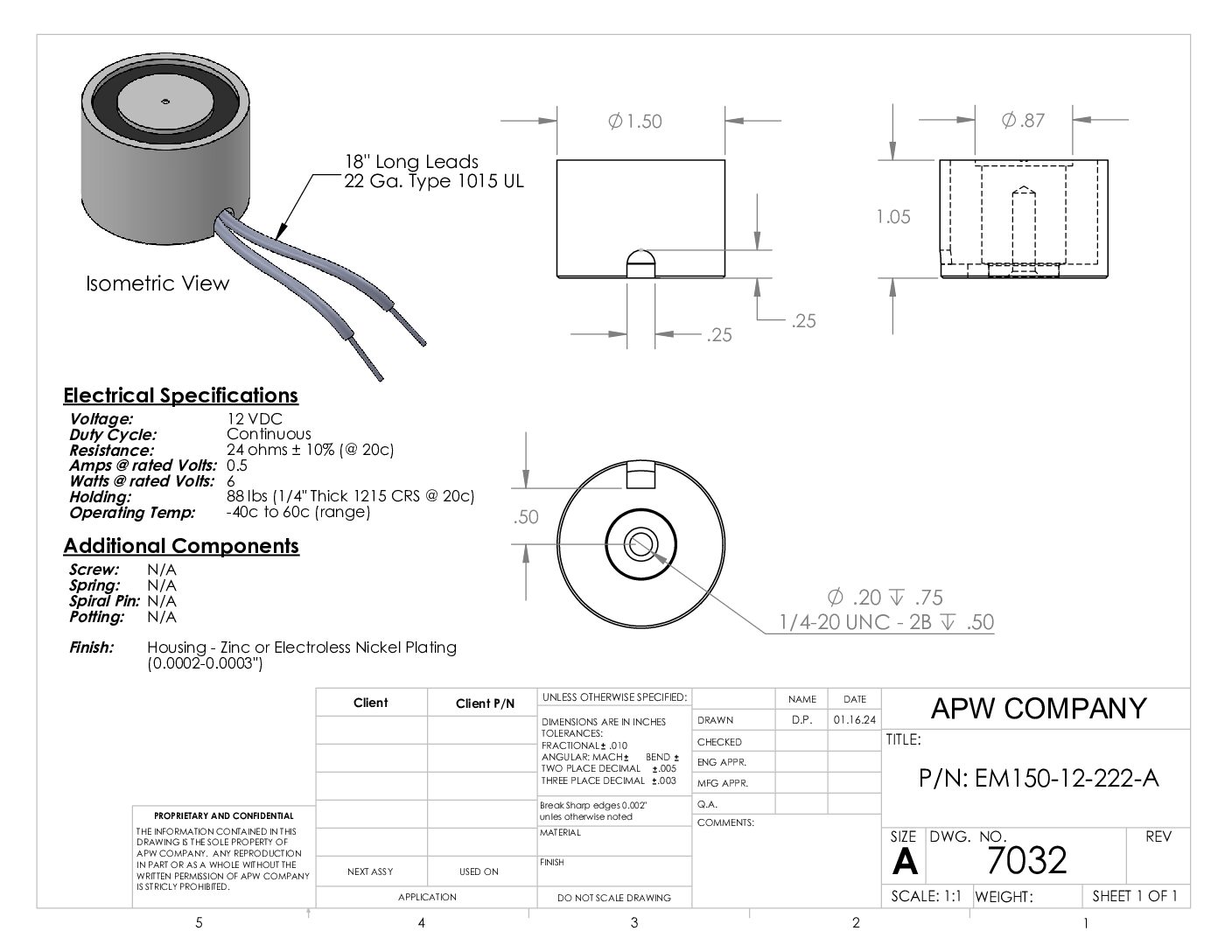

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.38 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 88 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.5 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Rear Tapped 1/4-20 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
