The EM150-110-222 is a high-quality, precision-made round electromagnet with a 1.5-inch diameter and a holding strength of 88 lbs. at 110 volts DC. This product is designed for use in various industrial applications, including metalworking, material handling, and automotive manufacturing, where strong and reliable holding force is necessary. Its compact size and high holding strength make it an ideal solution for limited-space applications. With a focus on durability and performance, the EM150-110-222 is an excellent choice for engineers seeking a reliable and precise electromagnet for their projects.
EM150-115ac-222 - Round Electromagnet 1.5 inch Dia. 115 volts AC - Holding 88 lbs.
$44.43
EM150-24-222 - Round Electromagnet 1.5 inch Dia. 24 volts DC - Holding 88 lbs.
$30.62
EM150-110-222 – Round Electromagnet 1.5 inch Dia. 110 volts DC – Holding 88 lbs.
$39.82
Available on backorder

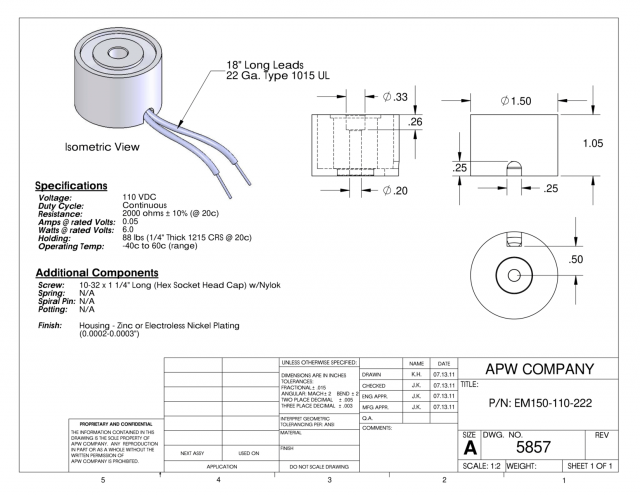

PRODUCT FILES: PDF SPECIFICATION
Additional information
| Weight | 0.38 lbs |
|---|---|
| Dimensions | 1.5 × 1.5 × 1.05 in |
| Holding Force (Lbs.) (2) | 88 |
| Voltage | 110 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.05 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 1 1/4 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | UL |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.5 |
| Height (in.) 3 | 1.05 |
