The EM137-9-222 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications. With a diameter of 1.375 inches and the ability to hold up to 44 lbs. of weight, this device is ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 9 volts DC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, among other applications. The EM137-9-222 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
EM137-24-221-B - Round Electromagnet 1.375 inch Dia. 24 volts DC - Holding 44 lbs.
$30.62
EM137-12-222-S1
$29.24
EM137-9-222 – Round Electromagnet 1.375 inch Dia. 9 volts DC – Holding 44 lbs.
$29.23
Available on backorder

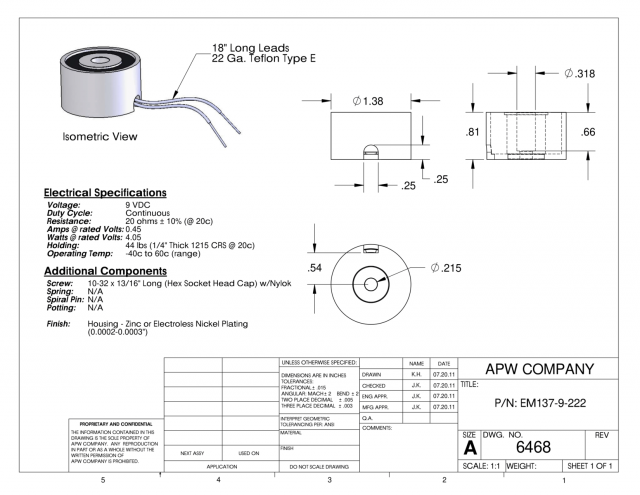

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.24 lbs |
|---|---|
| Dimensions | 1.375 × 1.375 × 0.81 in |
| Holding Force (Lbs.) (2) | 44 |
| Voltage | 9 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.45 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 13/16 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.375 |
| Height (in.) 3 | 0.81 |
