The EM137-115ac-222 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications. With a diameter of 1.375 inches and the ability to hold up to 44 lbs. of weight, this device is ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 115 volts AC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, among other applications. The EM137-115ac-222 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
EM137-24-121-S1 - Round Electromagnet 1.375 inch Dia. 24 volts DC - Holding 19 lbs.
$30.62
EM137-24ac-222 - Round Electromagnet 1.375 inch Dia. 24 volts AC - Holding 44 lbs.
$34.90
EM137-115ac-222 – Round Electromagnet 1.375 inch Dia. 115 volts AC – Holding 44 lbs.
$34.91
Available on backorder

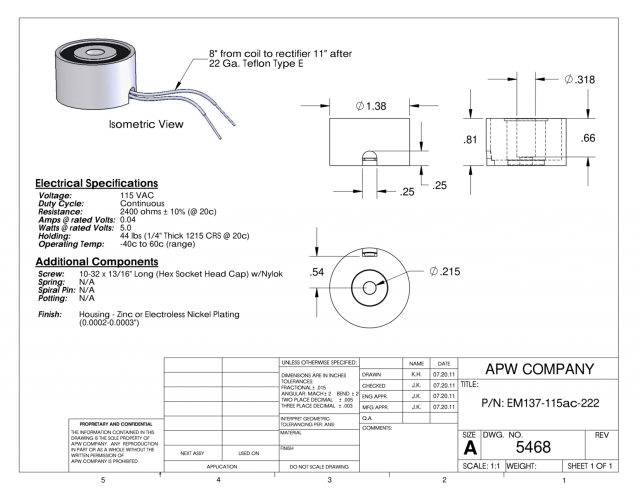

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.24 lbs |
|---|---|
| Dimensions | 1.375 × 1.375 × 0.81 in |
| Holding Force (Lbs.) (2) | 44 |
| Voltage | 115 |
| Current | AC |
| Duty | Continuous |
| Amps | 0.04 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 10-32 x 13/16 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1.375 |
| Height (in.) 3 | 0.81 |
