The EM100-3-222 is a precision-made round electromagnet designed for use in various mechanical and electrical applications. With a 1-inch diameter and the ability to hold up to 25 lbs. of weight, this high-quality device is ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 3 volts DC and offers exceptional performance and reliability. Electromagnets are commonly used in industrial manufacturing, automation, robotics, and security systems, among other applications. The EM100-3-222 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
EM100-3H-222 - Round Electromagnet 1 inch Dia. 3 volts DC - Holding 25 lbs.
$67.23
EM100-28-212 - Round Electromagnet 1 inch Dia. 28 volts DC - Holding 25 lbs.
$39.88
EM100-3-222 – Round Electromagnet 1 inch Dia. 3 volts DC – Holding 25 lbs.
$27.23
Available on backorder

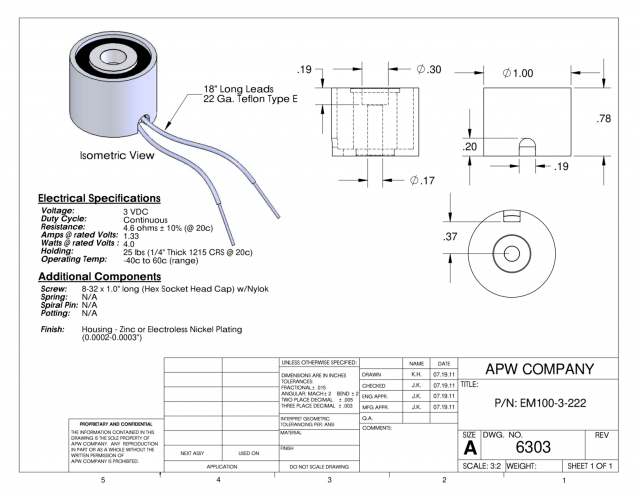

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 25 |
| Voltage | 3 |
| Current | DC |
| Duty | Continuous |
| Amps | 1.33 |
| Quick Release | No |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 8-32 x 1 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
