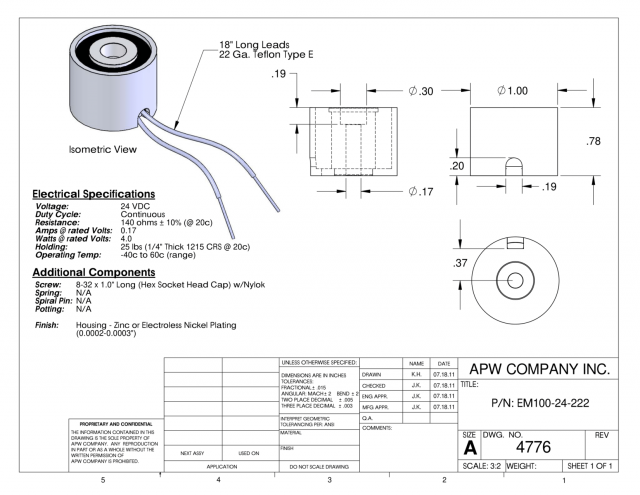

The EM100-24-222 is a precision-made, high-quality round electromagnet with a 1 inch diameter and a holding capacity of 25 lbs. Operating on 24 volts DC, this electromagnet is suitable for use in a variety of applications including robotics, automation, and industrial machinery. With its high holding force and durable construction, the EM100-24-222 is designed to provide reliable and consistent performance in demanding environments. Whether you need to control the movement of materials or secure components in place, this electromagnet is an excellent choice for your engineering needs.
EM100-24-112 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 19 lbs.
$27.23
EM100-12-112 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs.
$32.00
EM100-24-212-S1 – Round Electromagnet 1 inch Dia. 24 volts DC – Holding 25 lbs.
$56.00
Available on backorder
PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 25 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.16 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 8-32 x 1 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
