The EM100-24-122-A is a high-quality round electromagnet, designed for a wide range of mechanical and electrical engineering applications. The product features a 1-inch diameter and is capable of holding up to 19 lbs. with a 24-volt DC input. Made with precision craftsmanship, this electromagnet is ideal for use in applications such as door locks, security systems, and industrial automation. Its high holding strength ensures reliable and consistent performance, making it a dependable component for demanding projects.
EM100-24ac-122 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 19 lbs.
$32.95
EM100-12-122 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 19 lbs.
$27.23
EM100-24-122-A – Round Electromagnet 1 inch Dia. 24 volts DC – Holding 19 lbs.
$27.23
10 in stock (can be backordered)

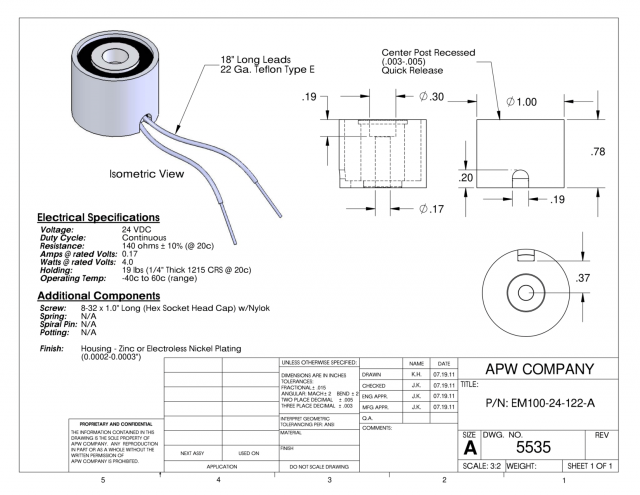

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 19 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.16 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 8-32 x 1 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
