The EM100-12-212 is a high-quality, precision-made round electromagnet designed for use in various mechanical and electrical applications. With a diameter of 1 inch and the ability to hold up to 25 lbs. of weight, this device is ideal for applications where a compact and reliable solution is required. The electromagnet is powered by 12 volts DC and offers exceptional performance and reliability. Electromagnets are widely used in industrial manufacturing, robotics, automation, and security systems, among other applications. The EM100-12-212 is a versatile and reliable product that is sure to meet the needs of any engineer looking for a powerful and durable electromagnet.
EM100-28-212 - Round Electromagnet 1 inch Dia. 28 volts DC - Holding 25 lbs.
$39.88
EM100-24-222-A - Round Electromagnet 1 inch Dia. 24 VDC - Holding 25 lbs.
$27.23

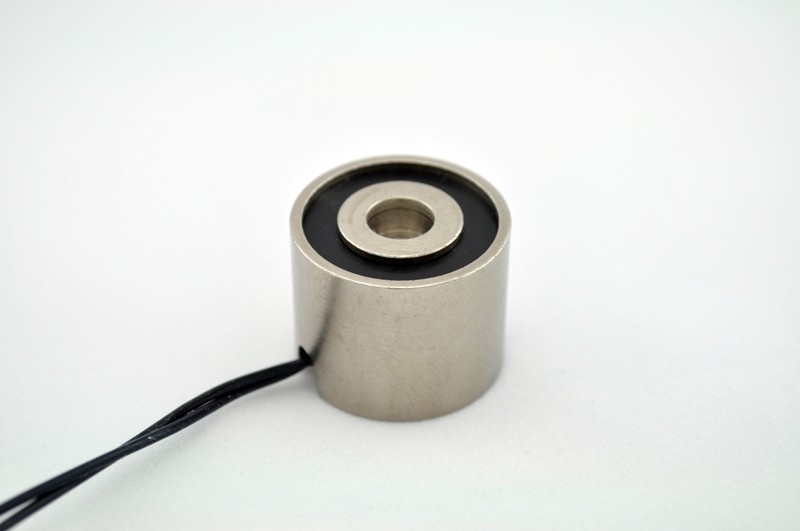

EM100-12-212 – Round Electromagnet 1 inch Dia. 12 volts DC – Holding 25 lbs.
$32.23
9 in stock (can be backordered)

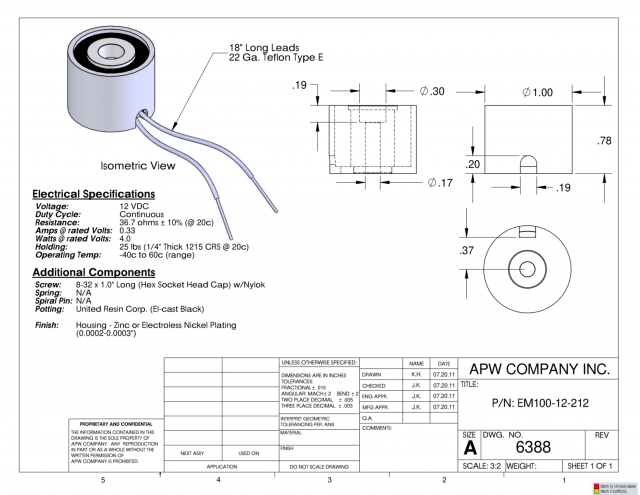

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 25 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.33 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Through-Hole w/ Shoulder Bolt |
| Bolt Desc. or Thread | 8-32 x 1 |
| Mounting Screw Supplied (2) | Yes |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
