The EM100-12-212-A is a high-quality round electromagnet with a 1-inch diameter and a holding capacity of 25 lbs. It is made with precision engineering for reliable and consistent performance. This electromagnet is designed to operate with 12 volts DC and is suitable for various applications that require a strong magnetic force, such as door locks, security systems, and industrial automation equipment. With its robust construction and durable design, the EM100-12-212-A is an ideal choice for demanding electromagnet applications.
EM300-12-222 - Round Electromagnet 3 inch Dia. 12 volts DC - Holding 400 lbs.
$80.74
EM100-24-212-A - Round Electromagnet 1 inch Dia. 24 VDC - Holding 25 lbs.
$27.23

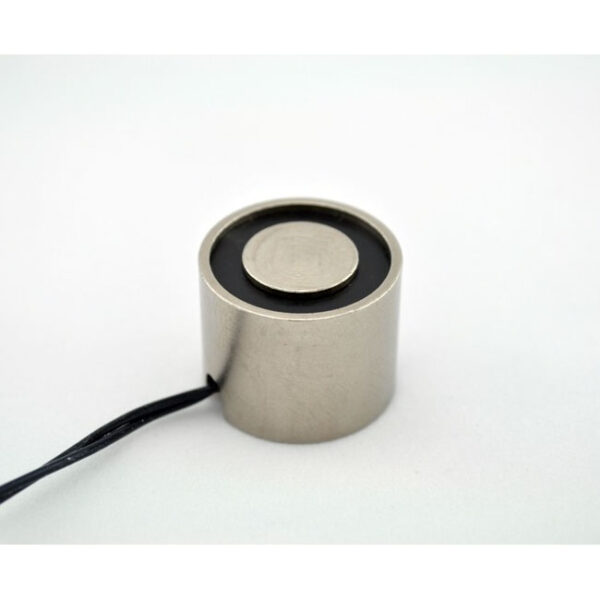

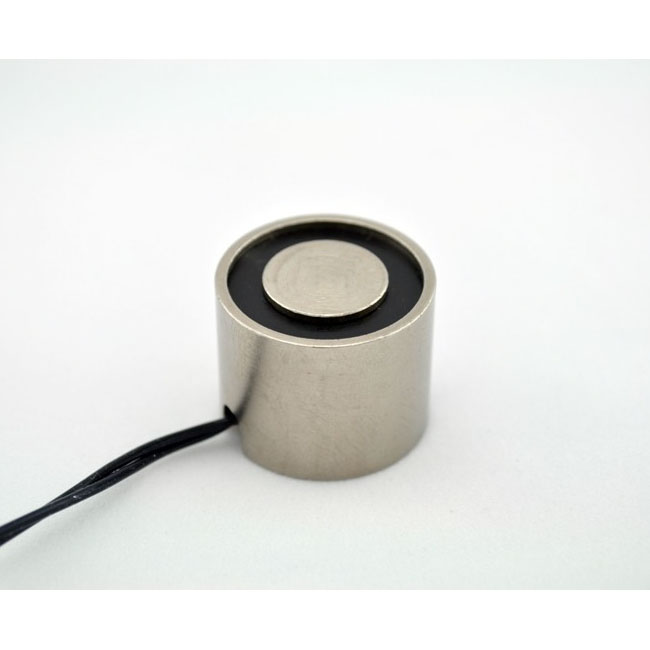

EM100-12-212-A – Round Electromagnet 1 inch Dia. 12 VDC – Holding 25 lbs.
$27.23
7 in stock (can be backordered)

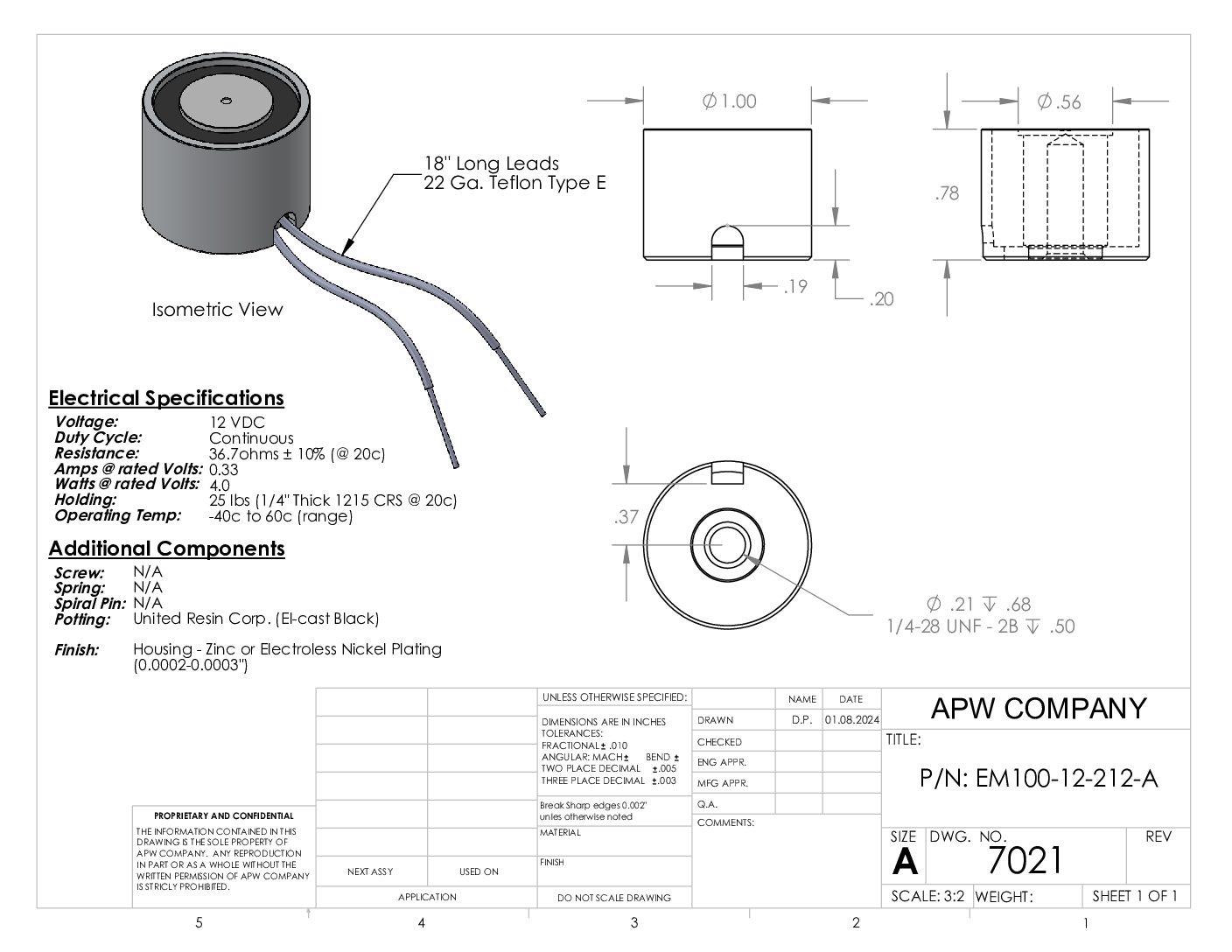

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 1 × 1 × 0.78 in |
| Holding Force (Lbs.) (2) | 25 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.33 |
| Quick Release | No |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Rear Tapped 1/4-28 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 22 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 1 |
| Height (in.) 3 | 0.78 |
