The EM075-24-112 is a precision-made round electromagnet with a diameter of 0.75 inches, capable of holding up to 4.5 lbs. at 24 volts DC. This high-quality electromagnet is ideal for various applications where controlled magnetic attraction is required, such as in sorting machines, clamping devices, and automation equipment. Its compact size and robust construction make it easy to integrate into existing systems, and its reliable performance ensures consistent operation. The EM075-24-112 is a durable and efficient solution for electromagnet needs in mechanical and electrical engineering projects.
EM075-6-212 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs.
$34.10
EM075-12-112 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 4.5 lbs.
$34.10

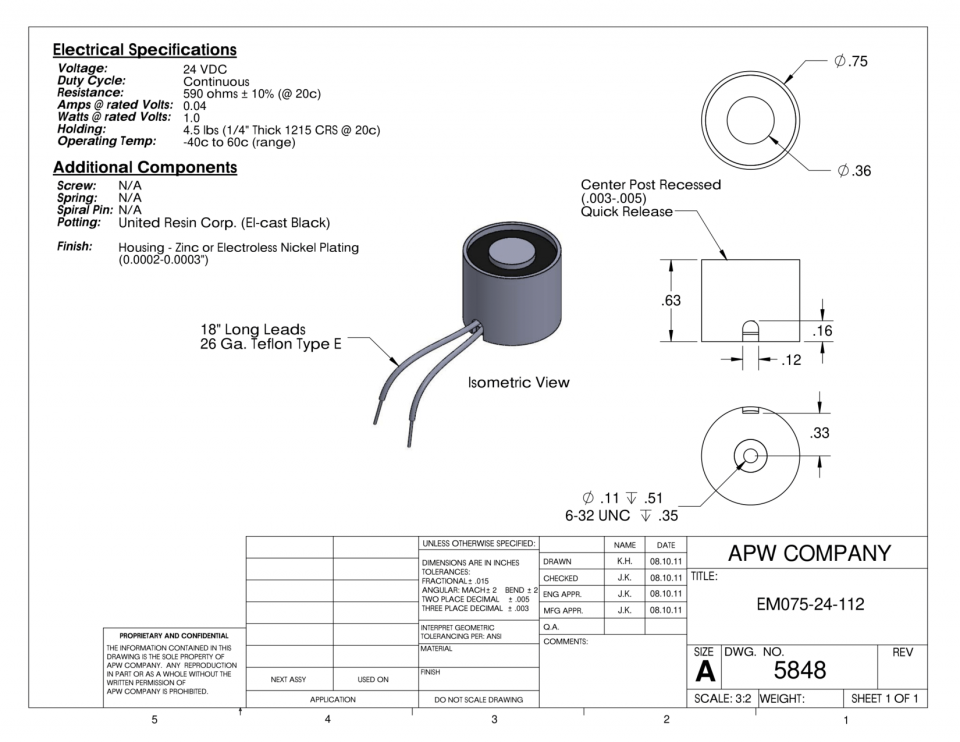

EM075-24-112 – Round Electromagnet 0.75 inch Dia. 24 volts DC – Holding 4.5 lbs.
$34.10
11 in stock (can be backordered)
PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.62 in |
| Holding Force (Lbs.) (2) | 4.5 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.04 |
| Quick Release | Yes |
| Encapsulation | Yes |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 19 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.62 |
