EM075-12-122 is a high-quality, precision-made round electromagnet with a 0.75 inch diameter and a holding capacity of 4.5 lbs. This product is designed for use with 12 volts DC power supply. Electromagnets like EM075-12-122 can be used in a wide range of applications, including robotics, industrial automation, automotive engineering, and security systems. Its compact size and high holding capacity make it an ideal choice for applications where space is limited. This product is manufactured to the highest standards and is built to last.
EM075-24-212-B - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.
$34.10
EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.
$29.24
EM075-12-122 – Round Electromagnet 0.75 inch Dia. 12 volts DC – Holding 4.5 lbs.
$29.24
3 in stock (can be backordered)

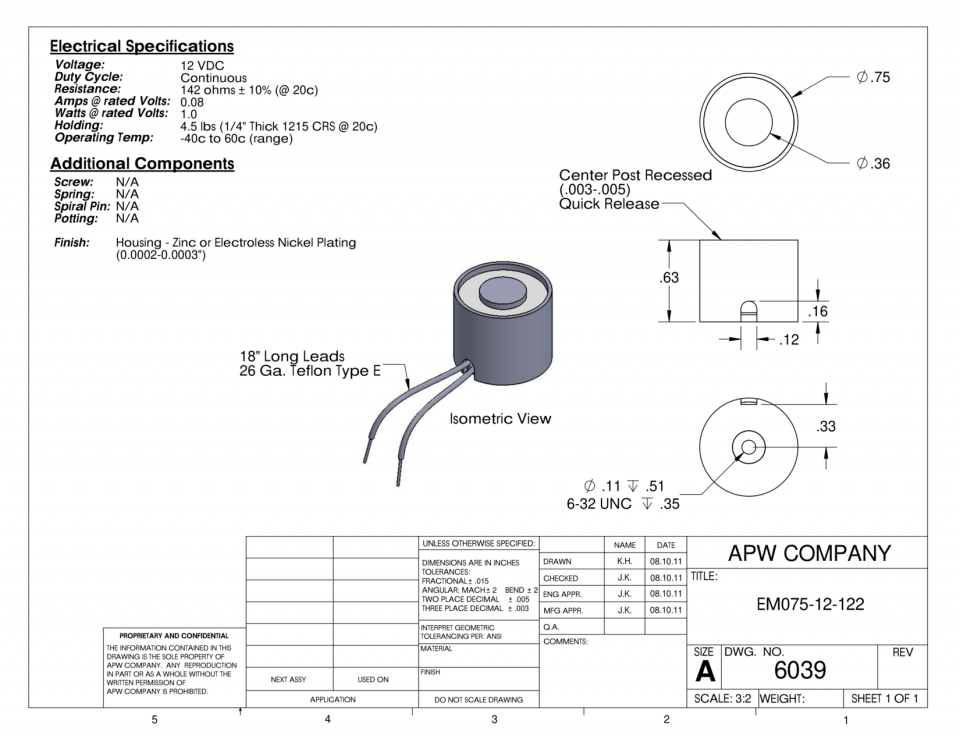

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 0.75 × 0.75 × 0.62 in |
| Holding Force (Lbs.) (2) | 4.5 |
| Voltage | 12 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.08 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 6-32 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 26 |
| Lead Wire Length (in.) | 18 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.75 |
| Height (in.) 3 | 0.62 |
