The EM050-24-122 Round Electromagnet is a high-quality and precision-made product designed to operate on 24 volts DC. With a diameter of 0.5 inches and a holding capacity of 2 lbs, this electromagnet is ideal for use in a range of applications, such as in sensors, actuators, and automation systems. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.

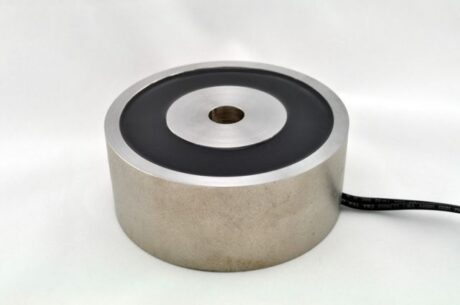

EM400-6-212 – Round Electromagnet 4 inch Dia. 6 VDC – Holding 800 lbs.
$138.74

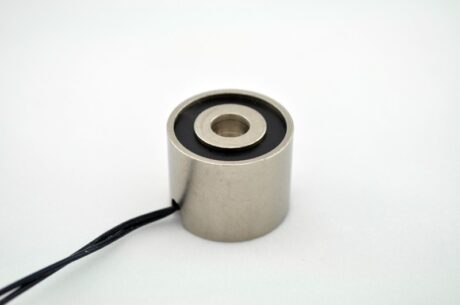

EM100-24-112 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 19 lbs.
$27.23
EM050-24-122 – Round Electromagnet 0.5 inch Dia. 24 volts DC – Holding 2 lbs.
$30.94
1 in stock (can be backordered)

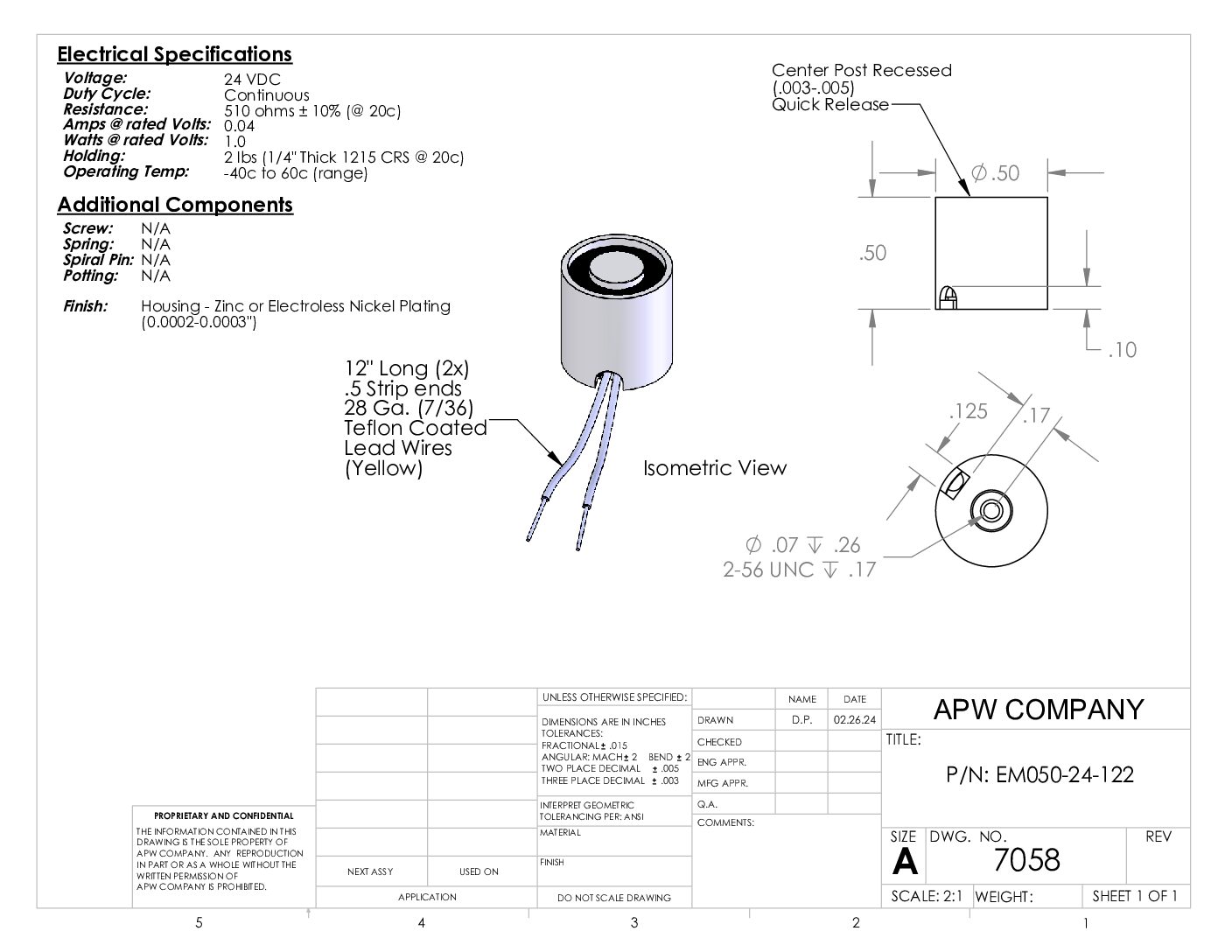

PRODUCT FILES: PDF SPECIFICATION 3-D FILE
Additional information
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 0.5 × 0.5 × 0.5 in |
| Holding Force (Lbs.) (2) | 2 |
| Voltage | 24 |
| Current | DC |
| Duty | Continuous |
| Amps | 0.04 |
| Quick Release | Yes |
| Encapsulation | No |
| Anti-Rotation Pin | No |
| Mounting Option | Tapped Rear Threaded |
| Bolt Desc. or Thread | Female 2-56 |
| Mounting Screw Supplied (2) | No |
| Lead Wire Type (3) | TFE |
| Lead Wire Ga. | 28 |
| Lead Wire Length (in.) | 11 |
| High Temperature (500 f) | No |
| Magnetic Stainless (430FR) | No |
| Outer Diameter (in.) | 0.5 |
| Height (in.) 3 | 0.5 |
